Application: Metallurgy, construction, water and electricity, transportation, chemical industry, building materials industry Processing materials: limestone, granite, marble, basalt, iron ore, pebble, shale, bluestone, coal, pebble, construction waste.
1. The lamination crushing principle is used to crush the material, with high crushing efficiency and low wear of wearing parts. After crushing, the finished product is cube with high fine content, which can meet the use needs of some high-quality aggregates.
2. The hydraulic cavity cleaning system can increase the gap between stationary cones by hydraulic lifting when the equipment is temporarily stuffy and other abnormal shutdown, which is convenient to clean the cavity and save maintenance time.

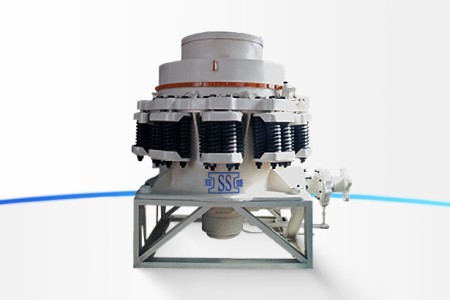

PY series spring cone crusher is suitable for crushing all kinds of ore and rock with medium and above hardness. The spring insurance system is overload protection device, can make the metal foreign body through the broken chamber without harming the machine, using dry oil or water seal form, so that the stone powder and lubricating oil isolation, ensure reliable work. The type of crushing cavity is determined by the use of ore, and the standard type is suitable for medium crushing. Medium suitable for fine crushing; Short head type is suitable for ultra-fine crushing. It has the characteristics of reliable structure, high production efficiency, convenient adjustment and economical use.
| Model | Bottom diameter of cone crusher head(mm) | Larger feed size(mm) | Discharge adjustment range(mm) | Crushing capacity(t/h) | Motor power(kw) | Eccentric shaft speed(r/min) | Weight(t) | Overall dimensions Length x width x height(mm) |
| PYB600 | Φ600 | 75 | 12-15 | 20-40 | 8P-30 | 356 | 5 | 2234×1370×1675 |
| PYD600 | Φ600 | 35 | 3-13 | 12-23 | 8P-30 | 356 | 5.5 | 2234×1370×1675 |
| PYB900 | Φ900 | 115 | 15-50 | 50-90 | 8P-55 | 333 | 11.2 | 2692×1640×2350 |
| PYZ900 | Φ900 | 60 | 5-20 | 20-65 | 8P-55 | 333 | 11.2 | 2692×1640×2350 |
| PYD900 | Φ900 | 50 | 3-13 | 15-50 | 8P-55 | 333 | 11.3 | 2692×1640×2350 |
| PYB1200 | Φ1200 | 145 | 20-50 | 110-168 | 8P-110 | 300 | 24.7 | 2790×1878×2844 |
| PYZ1200 | Φ1200 | 100 | 8-25 | 42-135 | 8P-110 | 300 | 25 | 2790×1878×2844 |
| PYD1200 | Φ1200 | 50 | 3-15 | 18-105 | 8P-110 | 300 | 25.3 | 2790×1878×2844 |
| PYB1750 | Φ1750 | 215 | 25-50 | 280-480 | 8P-160 | 245 | 50.3 | 3910×2894×3809 |
| PYZ1750 | Φ1750 | 185 | 10-30 | 115-320 | 8P-160 | 245 | 50.3 | 3910×2894×3809 |
| PYD1750 | Φ1750 | 85 | 5-13 | 75-230 | 8P-160 | 245 | 50.2 | 3910×2894×3809 |
| PYB2200 | Φ2200 | 300 | 30-60 | 590-1000 | 8P-(260-280) | 220 | 80 | 4622×3302×4470 |
| PYZ2200 | Φ2200 | 230 | 10-30 | 200-580 | 8P-(260-280) | 220 | 80 | 4622×3302×4470 |
| PYD2200 | Φ2200 | 100 | 5-15 | 120-340 | 8P-(260-280) | 220 | 81.4 | 4622×3302×4470 |
