1.Application: Widely used for fine crushing of granite, basalt, limestone, pebble and other minerals. 2.Materials: Limestone, pebble, mountain stone, LAPis lazuli, cobblestone, weathered sand, basalt, granite, quartz, DIABase.

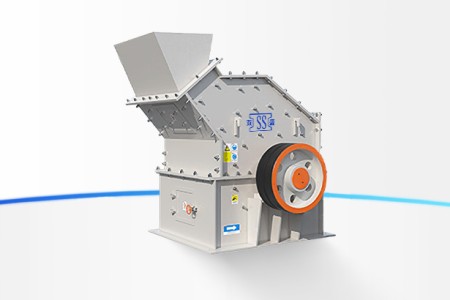

The new high efficiency fine crusher equipment adopts advanced mechanical production technology at home and abroad, the results of the specific production conditions of domestic mining, building materials, cement, mineral processing and other industries and research and development of a fine crusher equipment, suitable for all kinds of medium hardness materials.
The high efficiency fine crusher is simple in structure, convenient in maintenance, stable and reliable in production operation, large production capacity, hammer head adopts high wear-resistant material, longer service life.
The efficient fine crusher has undergone a series of improvements and upgrades. It is a convenient fine crusher equipment that saves time, money and labor.
The working principle of
When the high efficiency fine crusher works, the material enters the crusher cavity from the feeding port in turn, and then falls on the head of the high speed rotating movable hammer, where the material is initially broken through the effect between the hammer and the counter plate. The material is subjected to the high frequency of high efficiency fine crusher repeatedly hammer, will form a pile up on the partition, and fall on the lower rotor of high speed rotation, and is thrown to the counter plate into collision, fall and the mobile plate hammer forced to attack, crushing, grinding, after the crusher discharge port.
| Model |
Rotor diameter (mm) |
Feed port size(mm) | Feed particle size(mm) | Adjust the width of discharge seam(mm) | Processing(t/h) | Power(kw) |
| PXJ800*400 | 400*185 | < 120 | <5 | 5-20 | 20-30 | 37 |
| PXJ800*600 | 500*250 | <180 | <5 | 5-20 | 35-40 | 37 |
| PXJ800*800 | 550*330 | <180 | <5 | 5-20 | 35-45 | 45 |
| PXJ1010*1010 | 1000*350 | <180 | <5 | 5-20 | 45-55 | 75 |
| PXJ1010*1012 | 1200*400 | <180 | <5 | 5-20 | 80-110 | 90 |
| PXJ1200*1200 | 1200*450 | <180 | <5 | 5-20 | 100-110 | 132 |
| PXJ1400*1400 | 1500*500 | <190 | <5 | 5-20 | 100-150 | 160 |
| PXJ1600*1600 | 1600*550 | <190 | <5 | 5-20 | 170-210 | 200 |
| PXJ1800*1800 | 1800*800 | <190 | <5 | 5-20 | 250-300 | 315 |
