Application: Mining, smelting, building materials, highway, railway, water conservancy, chemical industry, etc Materials: Limestone, granite, marble, basalt, iron ore, Cobblestone, shale, bluestone, coal, cobblestone, construction waste.
The heavy rotor made of welded steel plates is used to obtain higher moment of inertia, greater crushing force and higher crushing efficiency.
The bearing seat adopts integral cast steel structure to ensure complete coordination with the crushing frame, which increases the radial strength of the bearing seat and improves the load resistance.

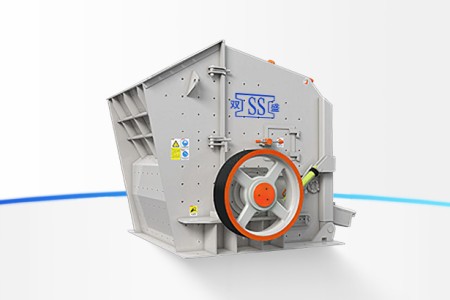

This machine is a kind of crushing machine that uses impact energy to break materials. When the material enters the plate hammer action zone, it is broken by the high speed impact of the plate hammer, and is thrown to the counter device installed above the rotor to be broken again, and then it bounces back from the counter lining plate to the plate hammer action zone to be broken again. This process is repeated until the material is broken to the desired size and discharged from the lower part of the machine. Adjusting the clearance between the counter frame and the rotor can achieve the purpose of changing the material size and shape. The machine adopts spring safety device after counterattack. When the non-broken material enters the crushing cavity, the front and rear counterattack frame will retreat, and the non-broken material will be discharged from the machine.
|
PF-1007 |
φ1000×700 |
400×730 |
≤250 |
15-60 |
Y250M-6 |
37 |
|
PF-1010 |
φ1000×1050 |
400×1080 |
≤300 |
50-90 |
Y315S-6 |
75 |
|
PF-1210 |
φ1250×1050 |
400×1080 |
≤300 |
70-130 |
Y315L1-6 |
110 |
|
PF-1212 |
φ1250×1200 |
400×1250 |
≤300 |
70-140 |
Y315L2-6 |
132 |
|
PF-1214 |
φ1250×1400 |
400×1430 |
≤300 |
90-180 |
Y315L2-6 |
132 |
|
PF-1315 |
φ1300×1500 |
680×1520 |
≤350 |
120-250 |
Y2-355M2-6 |
200 |
|
PF-1320 |
φ1300×2000 |
680×1570 |
≤500 |
160-350 |
Y2-355M2-6 |
280 |
|
PFV-1010 |
φ1000×1050 |
400×1030 |
≤200 |
35-60 |
Y315S-6 |
75 |
|
PFV-1210 |
φ1250×1050 |
570×1030 |
≤250 |
70-140 |
Y315L1-6 |
110 |
|
PFV-1214 |
φ1250×1400 |
570×1430 |
≤250 |
90-190 |
Y315L2-6 |
160 |
|
PFV-1315 |
φ1300×1500 |
625×1530 |
≤300 |
150-280 |
Y2-355M2-6 |
200 |
|
PFV-1320 |
φ1300×2000 |
990×2030 |
≤500 |
250-350 |
Y2-355M2-6 |
250 |
