Application: Mining, smelting, building materials, highway, railway, water conservancy, chemical industry, etc Materials: Limestone, granite, marble, basalt, iron ore, Cobblestone, shale, bluestone, coal, cobblestone, construction waste.
Using THE FINITE ELEMENT analysis technology, the movable jaw assembly is made of high quality steel CASTings, the heavy eccentric shaft is made of forged billet, and the bearing pedestal is made of integral cast steel structure, which improves the strength and stability of the equipment while reducing the quality.
Discharge port adopts hydraulic wedge adjusting device, simple and fast; Adopt centralized lubrication device, lubrication is more convenient;

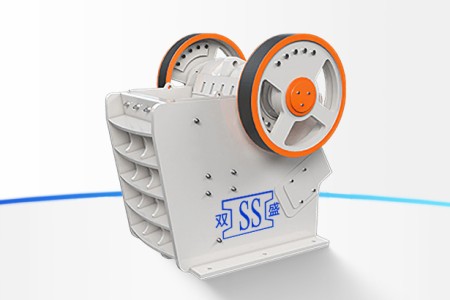

PEW European version of Hubei crusher crushing mode for the bending extrusion type. Its working principle is: the motor drives the belt and pulley, and the moving jaw swings back and forth up and down through the eccentric shaft. When the moving jaw pushes the moving jaw plate to the fixed jaw plate, the material is crushed or split. When the movable jaw and movable jaw plate retreat under the action of eccentric shaft and spring, the previously crushed or split material is discharged from the lower discharge port of the jaw plate. With the continuous rotation of the motor, the crusher jaw crushes and discharges the material periodically to achieve mass production.
| Model | PEW860 | PEW1100 | PEW200×1300 | PEW250×1000 | PEW250×1200 | PEW400×600 | |
| Feed port size(mm) | 860×1100 | 1100×1200 | 200×1300 | 250×1000 | 250×1200 | 400×600 | |
| Feed particle size(mm) | ≤720 | ≤930 | ≤180 | ≤220 | ≤220 | ≤350 | |
| Discharge port adjustment range(mm) | 100-225 | 150-275 | 10-30 | 20-40 | 20-40 | 35-85 | |
| Eccentric shaft speed(rpm) | 240 | 210 | 320 | 330 | 330 | 250 | |
| production(t/h) | 200-500 | 300-650 | 12-35 | 15-50 | 20-50 | 15-70 | |
| motor | power(kW) | 132～160 | 185～200 | 30～37 | 30～37 | 37～45 | 37～45 |
| speed(rpm) | 985 | 740 | 980 | 980 | 980 | 980 | |
| Overall dimensions (length × width × height)(mm) | 3300×2320×3120 | 4140×2660×3560 | 1320×2150×1175 | 1400×1850×1310 | 1400×2050×1310 | 1920×1460×1840 | |
| weight(kg) | 32000 | 59200 | 7500 | 6800 | 7800 | 8000 | |
