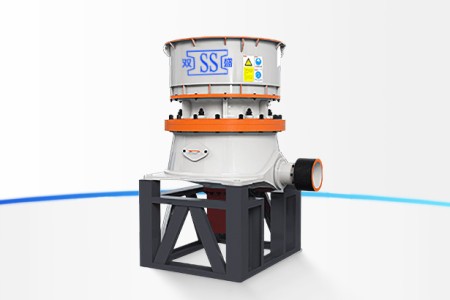

CS/CH series single cylinder hydraulic cone machine

CS/CH series single cylinder hydraulic cone machine

1. The frame is heavy-duty designed with first-class steel; 2. The lining board is made of high quality manganese steel composite material, which is more wear-resistant; 3. Adopt large diameter spindle, more durable. 2. This series of cone crusher has a larger feeding mouth, can play a greater performance to adapt to a variety of crushing technology, widely used in medium crushing to ultra-fine crushing, and fixed to mobile crushing station.

Advantage

- High reliability

The frame is heavy-duty designed with first-class steel

The lining plate is made of high-quality high-manganese steel composite material, which is more wear-resistant

Adopt super-large diameter spindle, more sturdy and durable

- Low production cost

The long experience and advanced metallurgical technology enable the crusher to fill the cavity and automatically compensate the gap between the tooth plates during the operation process, so as to improve the working efficiency of the crusher, so as to ensure the lower unit production cost.

- Wide applicability

The machine has a larger feeding port, which can maximize its performance to adapt to various crushing processes. It is widely used in medium crushing to ultra-fine crushing, and stationary to mobile crushing stations. The perfect combination of optimized crushing speed, eccentricity (stroke) and cavity design can provide higher output and better product quality.


Technical parameters



Model

Power(kw)

Cavity type

Max feed size(mm)

CS420



90



EC

240

C

200



CS430







160





EC

380

C

300

MC

235



CS440







250





EC

450

C

400

MC

300

CS660



315



EC

560

C

500





CH420















90











EC

135

C

90

M

65

MF

50

F

38

EF

29





CH430















160











EC

185

C

145

M

90

MF

75

F

50

EF

35







CH440



















250













EC

215

C

175

MC

140

M

110

MF

85

F

70

EF

38







CH660





















315















EC

275

CX

245

C

215

MV

175

M

135

MF

115

F

85

EF

65







CH870



















500













EC

300

C

240

MC

195

M

155

MF

100

F

90

EF

80









CH880

























600

















EC

370

C

330

MC

260

M

195

MF

130

F

120

EFX

100

EF

85

EEF

75
