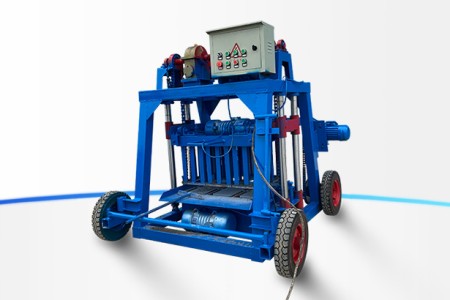

Manual hollow block forming machine is a kind of high quality micro block machine, its main feature is energy saving, without tray can produce hollow block on the cement floor, especially suitable for small factories.
This brick making machine is developed by combining the advantages of several other manual brick - making machines. The machine has reasonable structure and advanced technology. Four vertical axis guide, upper die push and pull, automatic scraping, reducer lifting mode. Thus, it can improve the forming speed of block, increase the density of block and reduce the consumption of raw materials. Only one person is needed for production and transportation. less investment, so this manual hollow block machine is very suitable for factory or home business use.
YD4-45 brick machine features
1. The multifunctional
produce a variety of hollow blocks, solid blocks, pavers and kerbs by changing the mold.
2. Durable, high density brick
The new technology OF mold vibration is adopted to make bricks, so that the working state of the brick machine is more stable and efficient, and the bricks with better quality, higher density and higher strength are produced.
3. High quality mold
Precision wire cutting technology and carburizing technology ensure longer die life.
4.Standardization
All materials and spare parts are selected in accordance with international CE standards to ensure stable operation.
5. Spare parts
Follow the machine shipment, we provide suitable wearing parts, after-sales service will be faster.
|
Technical Parameter(Block Making Machine) |
Detailed Data |
|
Overall Dimension |
1600×1500×1200(mm) |
|
Rated Pressure |
16MPa |
|
Main Vibration Form |
Platform Vibration |
|
Cycle Time |
45 seconds |
|
Vibration |
35KN |
|
Vibrating Frequency |
2800-4500 rolls/minute |
|
Motors Power |
6.65KW |
|
Pallet Size |
No Pallet |
|
Weight |
1200KG |
|
Block Type
|
Size (mm)
|
Molding Cycle
|
Pcs/Mold
|
Pcs/10 Hours
|
|
Hollow Block
|
400*200*200
|
45s
|
4
|
4100
|
|
Hollow Block
|
400*150*200
|
45s
|
5
|
5100
|
|
Hollow Block
|
400*100*200
|
45s
|
7
|
7200
|
