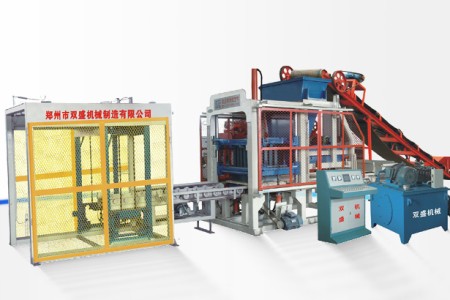

QT4-15 automatic concrete block forming machine is controlled by computer programming PLC, which has high automatic production efficiency and low labor intensity. The compactness and quality uniformity of concrete products are good. By changing the mold, various cement products such as hollow bricks, paving bricks, solid bricks and solid bricks can be produced.
T4-15 automatic brick making machine We provide complete technical support, including site planning, installation guidance, technical training and after-sales service. 1. Materials and welding: All materials and parts are selected according to international CE standards, and carbon dioxide protection will ensure the stable operation of the whole production line. 2. Electrical control system: select domestic famous brands combined with independent machine control system to ensure stable and efficient working conditions. 3. Switchgear: The switch adopts Chint, Siemens or Schneider of France. 4. Hydraulic system: The machine adopts advanced hydraulic forming technology to ensure that the block forming machine has a stable and efficient working state, and the produced blocks have better quality, higher density and higher strength. 5. Modular mold: Our mold is made of Q355R manganese steel. In addition to good raw materials, precision wire cutting technology and 900℃ carburizing heat treatment technology are used in the production of brick molds. Then the die size error can be controlled within 0.002 mm. The surface layer of brick mold has higher hardness (reaching HRC54-58) and better wear resistance. 6. Vibration system: this machine adopts special technology to optimize the vibration shaft, so that the vibration ratio covers the whole surface range, the product quality is greatly improved, and the noise is effectively reduced. The unique fixed platform design of the machine can improve the molding speed and dimensional accuracy.
|
Molding cycle |
15-20seconds/time |
|
Host power |
24kw |
|
Machine weight |
4000kg |
|
External dimension |
3500*1500*2400mm |
|
Pallet size |
900*600*25mm |
|
|
Standard brick |
Hollow brick |
Bread brick |
|
Product quantity |
26 |
4 |
16 |
|
Output |
45000 |
6500 |
21000 |
|
Production cycle |
15 |
15 |
20 |
|
Size |
240*115*51 |
400*200*200 |
200*100*60mm |
